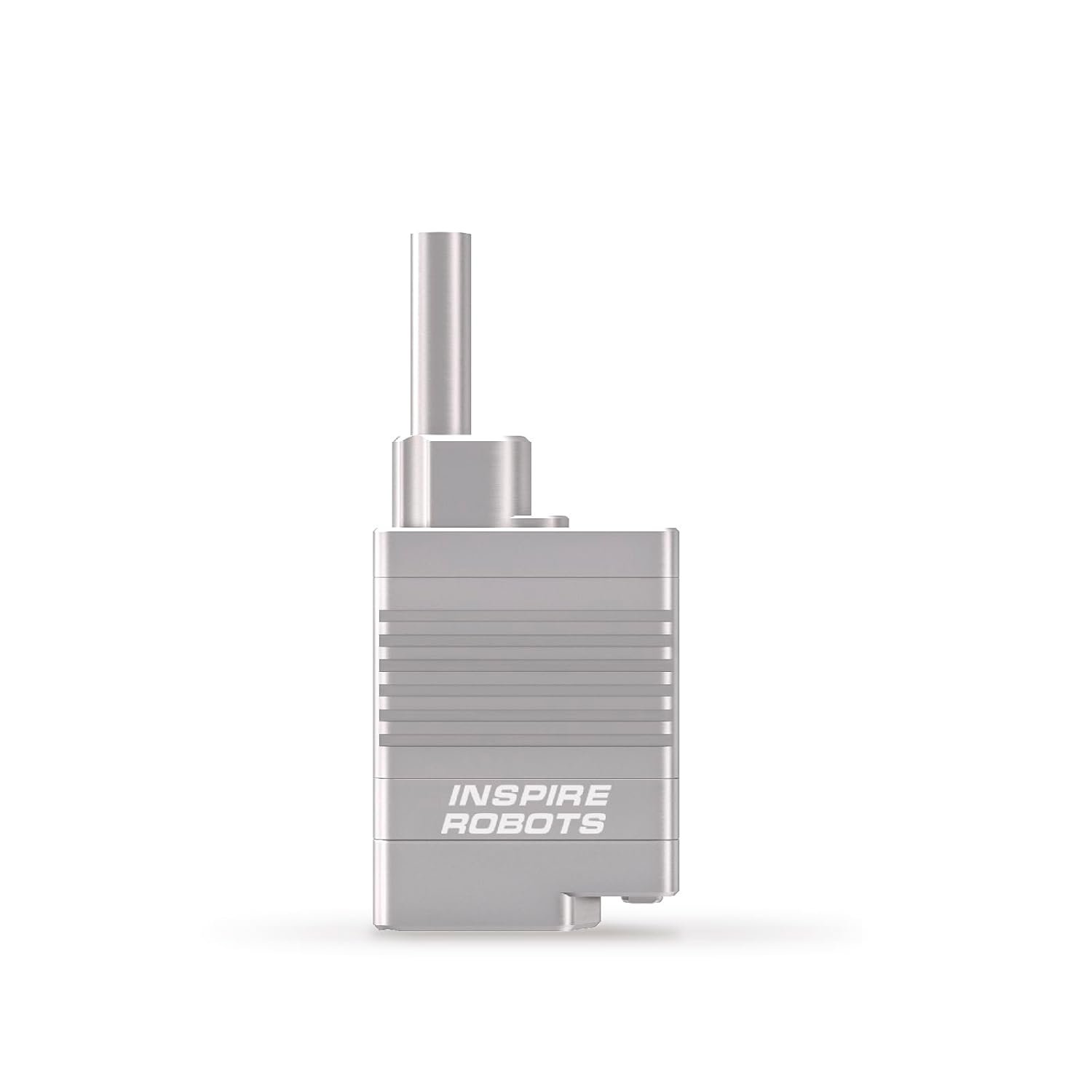

INSPIRE ROBOTS LAS High Precision Micro Linear Servo Actuator,Stroke 16mm,Force 23.6lbs(105N), Drive&Control Integrated| for Robotics,Industrial Automation,Biomedical Instrument,Education|LAS16-021D

Price: $259.99
(as of Apr 07, 2025 22:01:58 UTC – Details)

From the brand

Founded in Beijing in 2016, INSPIRE-ROBOTS began its journey with the successful development of the first generation of micro linear servo actuators that same year.We are specializing in developing and manufacturing the micro high precision motion control components. Our product includes the Micro Linear Servo Actuator and Dexterous hands, with unique advantages in micro-size, high precision and force control.

What makes our products unique?

INSPIRE-ROBOTS has focused intensely on research and development, We take pride in our over 70 patents. This dedication to independent innovation is what sets our products apart,offering top-quality, innovative intelligent manufacturing solutions.

Why do we love what we do?

We are committed to providing high performance solutions and more possibilities for the companies that need precision control but are limited by the size of devices,pushing the boundaries of intelligent manufacturing solutions,bringing groundbreaking, patented technology to our customers.

Robotics

Dexterous Robot Hand

Robotics

Bipedal robot

New Energy

Battery Manufacturing Equipment-Closed Loop Coating Die Head

Automated Industry

Precision soldering and Place the studs

Automated Industry

Apply adhesive and Workpiece Placement(Precision alignment)

Biomedical Instrument

Minimally invasive and Surgical instrument

Biomedical Instrument

Aesthetic medicine instrument and Multichannel pipette

Aerospace

Helicopter and Model airplane

Package Dimensions ‏ : ‎ 8.67 x 5.49 x 2.76 inches; 3.52 ounces
Item model number ‏ : ‎ LAS16-021D
Date First Available ‏ : ‎ January 12, 2024
Manufacturer ‏ : ‎ INSPIRE-ROBOTS
ASIN ‏ : ‎ B0CS5X3GJF

Integrated High-Performance Design:INSPIRE-ROBOTS LAS16 Micro Linear Servo Actuator comes with a small integrated system combining a 8V core-less brushed motor, precision planetary reducer, position sensor, precision screw mechanism and closed-loop drive and control servo system in a single machine.Built-in absolute position sensor enables the retention of position information even during a power loss, without the need for a reference point.(D-LVTTL communication support).
Exceptional Precision,High Power Density: The mini linear actuator offers high-precision motion control with an accuracy of up to 0.03mm and a maximum stroke length of 0.62 inches (16mm). It achieves a full load speed of 4mm/sec and no-load speed of 13mm/sec, while providing a substantial force capacity of up to 23.6lbs(105N). Self-locking function activates after a power failure, ensuring safe operation with a maximum self-locking force of 150N.
Compact Design,Quick&easy Installation:Boasting a slim appearance,lightweight structure,the micro linear actuator only size 44.5mm*24.8mm,weight 24g,perfect for space-constrained applications.Design with M3 threaded interface and standard mechanical interface,you can quickly and easily install it to your electric devices,The whole debugging kit included in the package.(a USB actuator connection cable,a communication module,a power supply unit).
Strong Adaptability and Versatile Applications: Encased in corrosion-resistant aluminum alloy housing, these compact electric linear actuators are designed to endure harsh environments and support long-term, high-intensity, high-speed operations. They are CE, RoHS, and FCC certified, ensuring reliable and safe performance across various industries, including robotics, automated manufacturing, biomedical instruments, education and scientific research, and aerospace
Professional Support,Contact Us for Customization: Backed by Inspire-Robots’ years of expertise in manufacturing micro linear servo actuators, available in various stroke lengths(10mm-50mm), force(21N-400N),speed level(4mm/s-70mm/s),Precison(0.002mm-0.1mm)and mounting options to meet diverse application needs. We have a professional and experienced technicians team to service you within 24 hours for your project’s success.
